Panel Material: Anodised Aluminium, 2.5mm thick

Terminal: Captive screw and plate

Dimensions:
1 Panel Insert – 38.0mm x 38.0mm

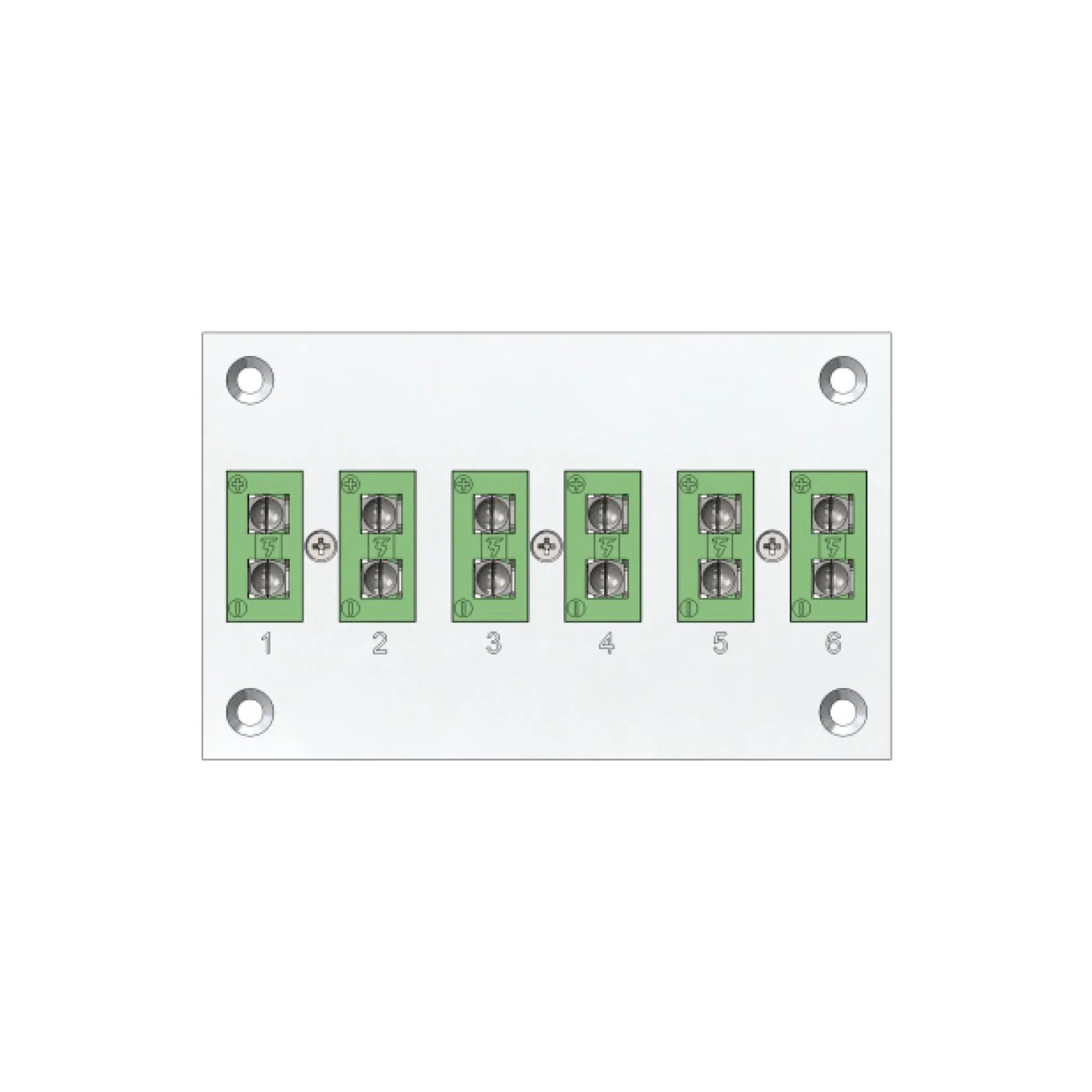

6 Panel Insert – 146.0mm x 67.0mm
12 Panel Insert – 260.0mm x 67.0mm
24 Panel Insert – 260.0mm x 115.0mm
30 Panel Insert – 375.0mm x 115.0mm

Alignment: Horizontal or Vertical

Connector: Type specified as required

Material: Thermoplastic

Contacts:
Class 1material, reverse polarity protected
Socket with spring loaded contacts

Temperature Rating: Standard Up to 250°C, High Temperature up to 320°C

Standard: EN50212
