Miniature Connectors Panel Connectors
Miniature Connectors Panel Connectors
$0.00
Body: Thermoplastic
Contacts: Class 1material, reverse polarity protected
→ Plug with coded flat contacts
→ Socket with spring loaded contacts
Terminal: Captive screw and plate
Temperature Rating: Up to 250°C
Standard: EN50212
Quantity:
Basic Panel Insert Back mounted with assembly set
Collar Insert Back mounted with assembly set
Lug Insert Front mounted with screws
Rectangular Insert Front mounted with brass nut and spring set
Round Insert Back mounted with brass nut and spring set
Round Insert Front mounted with screws
Square Insert Back mounted with brass nut and spring set

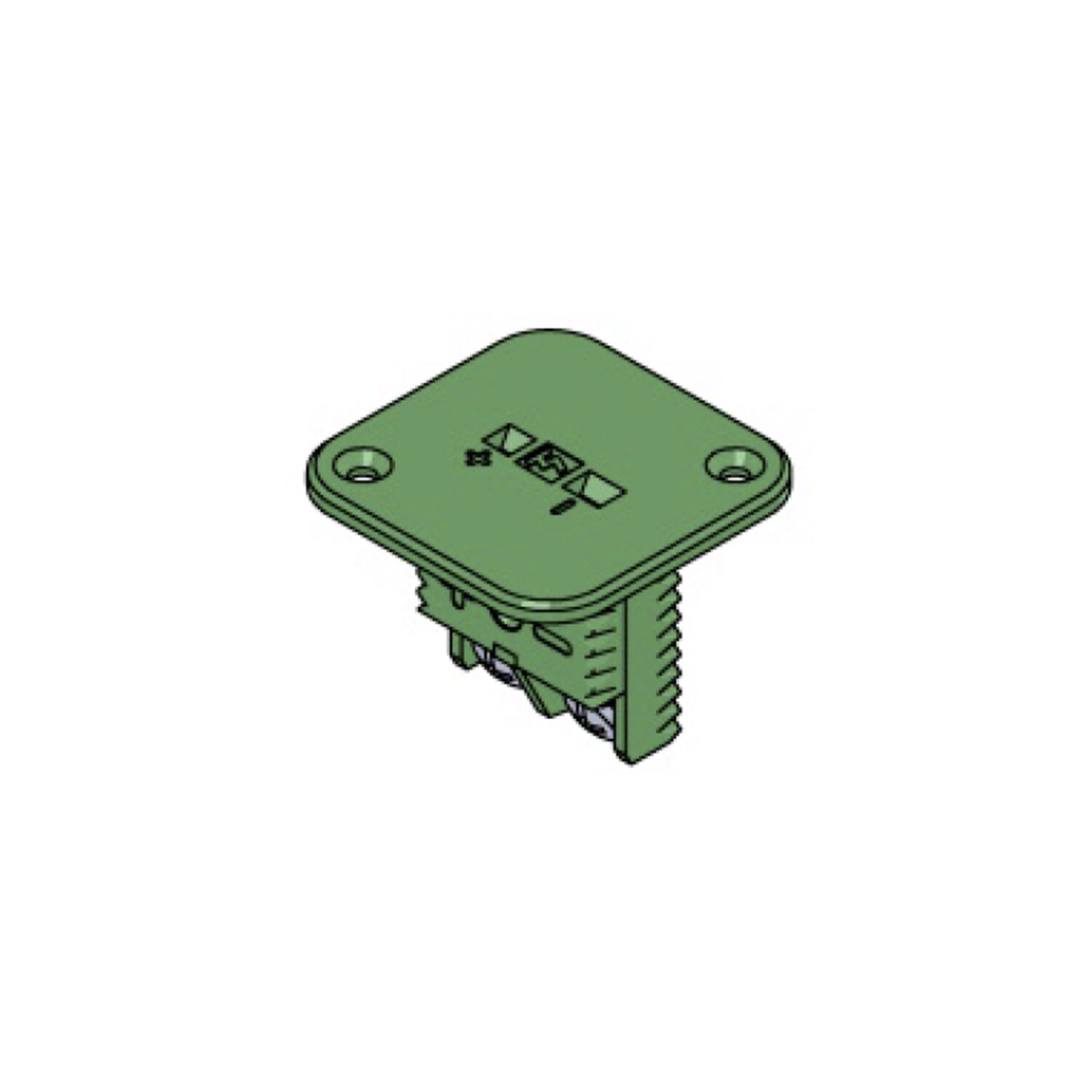

Square Insert Front mounted with screws
| Type | IEC | ANSI |
|---|---|---|
| K | Green  | Yellow  |
| J | Black  | Black |
| T | Brown  | Blue  |
| B | Grey  | Grey |
| R/S | Orange  | Green |
| E | Purple  | Purple |
| N | Pink  | Orange |
Colour Coding to DIN EN 60584
