Premier Hose Technologies Mini Ejector Pump
Premier Hose Technologies Mini Ejector Pump
The Mini Ejector Pump is manufactured by Premier Hose Technologies and is designed for pumping out flooded basements or similar excavations.
Machined from Aluminium solid bar and hard anodised to provide improved wear resistance and also excellent corrosion resistance, it has no moving parts and is maintenance free. It very effectively removes water to a depth of approximately 25mm (1”) and can be left to work unsupervised. The pump connects to High Pressure Hose Reel Tubing and uses a venturi system to pump out water through Layflat Delivery Hose.
Key features:
Angled hose reel connection provides room for easy connection/disconnection
Precision machined parts provide high quality and reliable performance

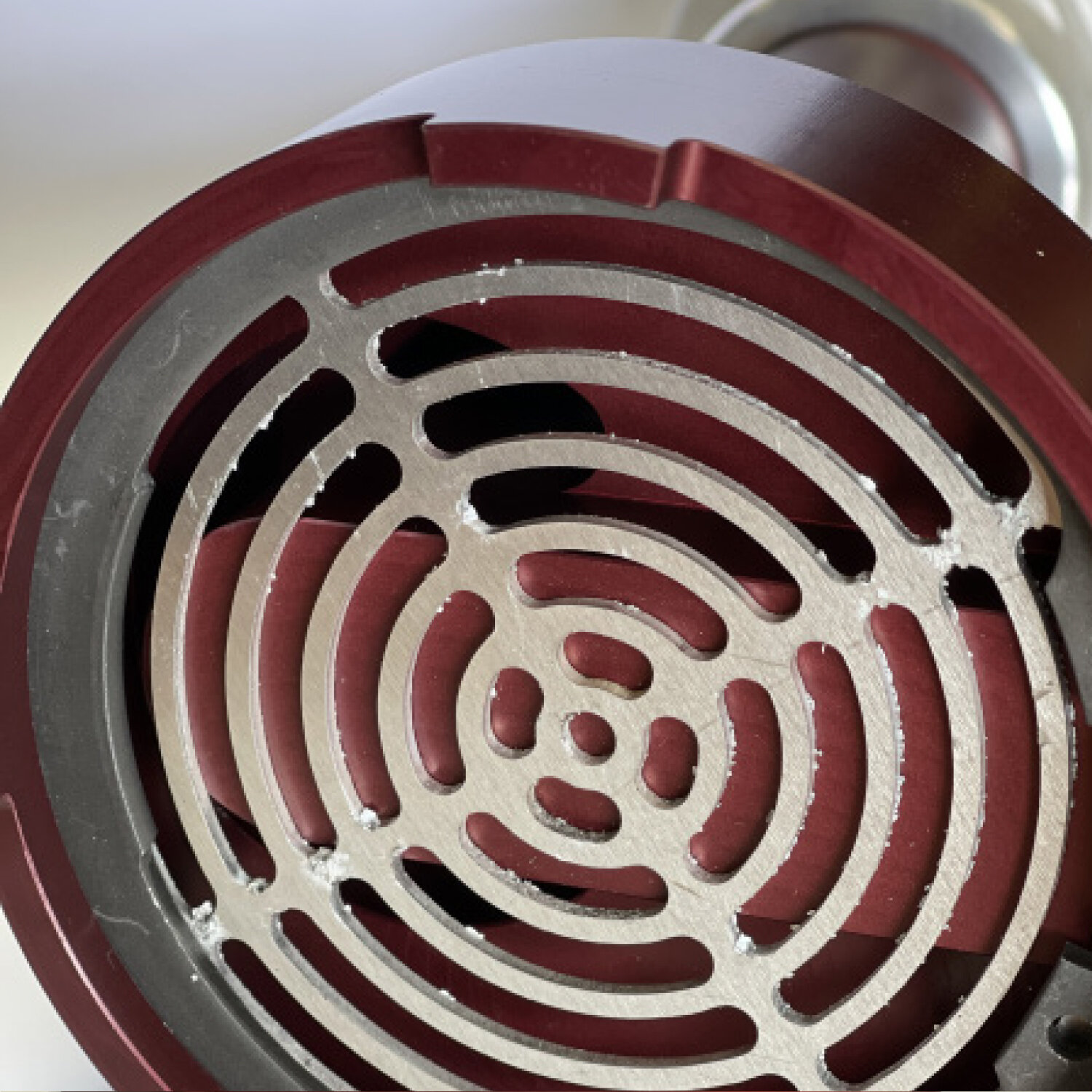

Large intake area with a stainless steel mesh protector
Balanced Robust Design gives strength and stability
| SPECIFICATIONS | |
|---|---|
| Weight: | kg Complete with Hose Reel Coupling and British Instantaneous Female |
| Dimensions: | 250mm x 125mm approx |
| Inlet: | ¾” BSP female or Sleeve lock Male Hose Reel Coupling |
| Outlet: | 1½” BSP male or 2½” Instantaneous Female to BS336. Other connection options are available on request |
| Material: | Aluminium, hard Anodised |
PERFORMANCE CHART
| Inlet Pressure (Bar) | Water Input (Lpm) | Water Pick-up at 3mtr Total Head (Lpm) | Water Pick-up at 6mtr total head (Lpm) |
|---|---|---|---|
| 3 | 30 | 80 | 40 |
| 4 | 40 | 120 | 64 |
*Max working pressure of 16Bar
PRODUCT DOWNLOADS
Click below for a technical data sheet for this product
